Radio Bench

Amateur Radio

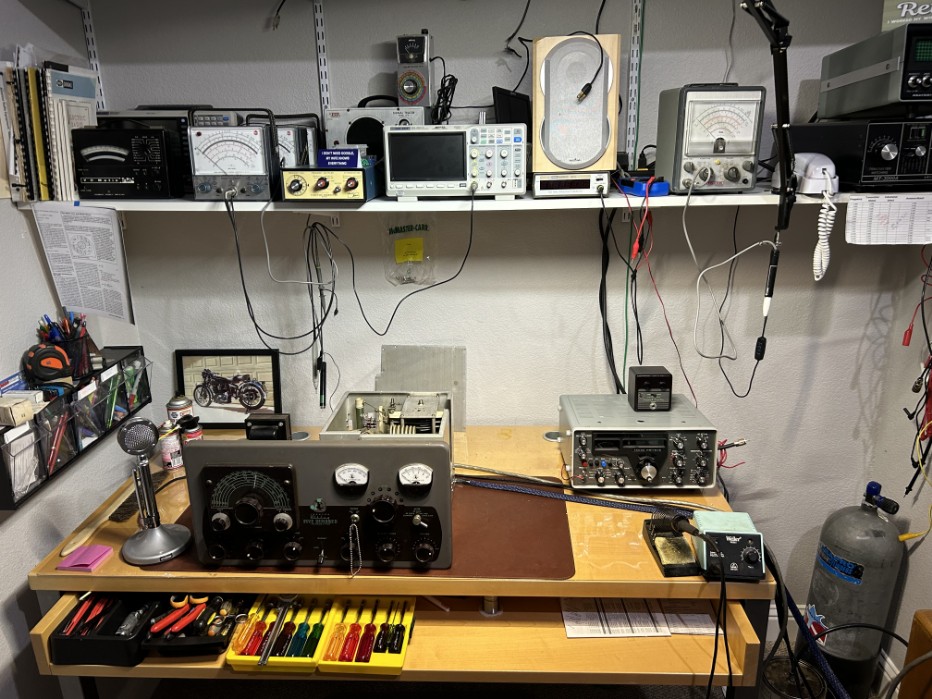

2023:  This is the new workbench for radio and electronics projects.  It is a very well-built and stout table with a stout slide-out shelf for tools.  It also features locking wheels.  It has a clear plastic protective cover over the entire top.  It may also serve as my AM operating position down the road.

The radio gear on the bench:  A Johnson Viking 500 transmitter.  Also, a Yaesu FR-101S being paired with the AM transmitters for 2023.

Test equipment includes a Siglent 2.1Ghz spectrum analyzer, Siglent Oscilloscope, Eico signal tracer, Eico VTVM, RCA Voltohmyst WV-98C, B&K frequency counter, Heath function generator, B&K Vomatic which measures up to 6,000 volts AC or DC, Knight grid-dip meter and a Heathkit SB-614 station monitor.  2024: Recently added: Siglent SDG2042X Arbitrary Waveform Function-Generator. (not shown); it is one of the most used pieces of test gear on my bench.
